ALP X

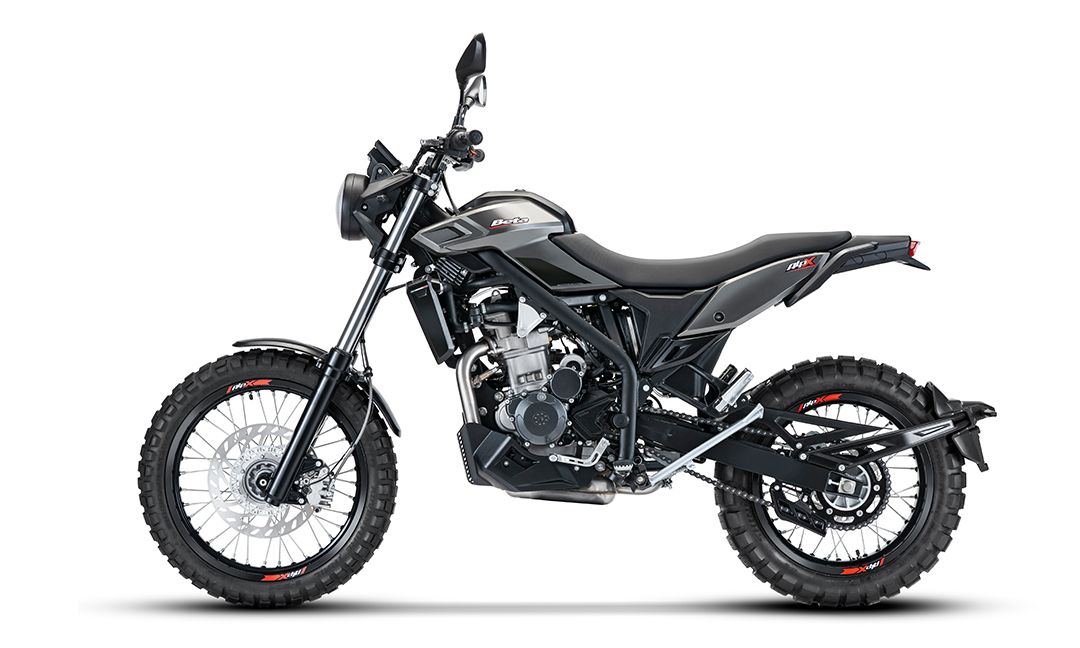

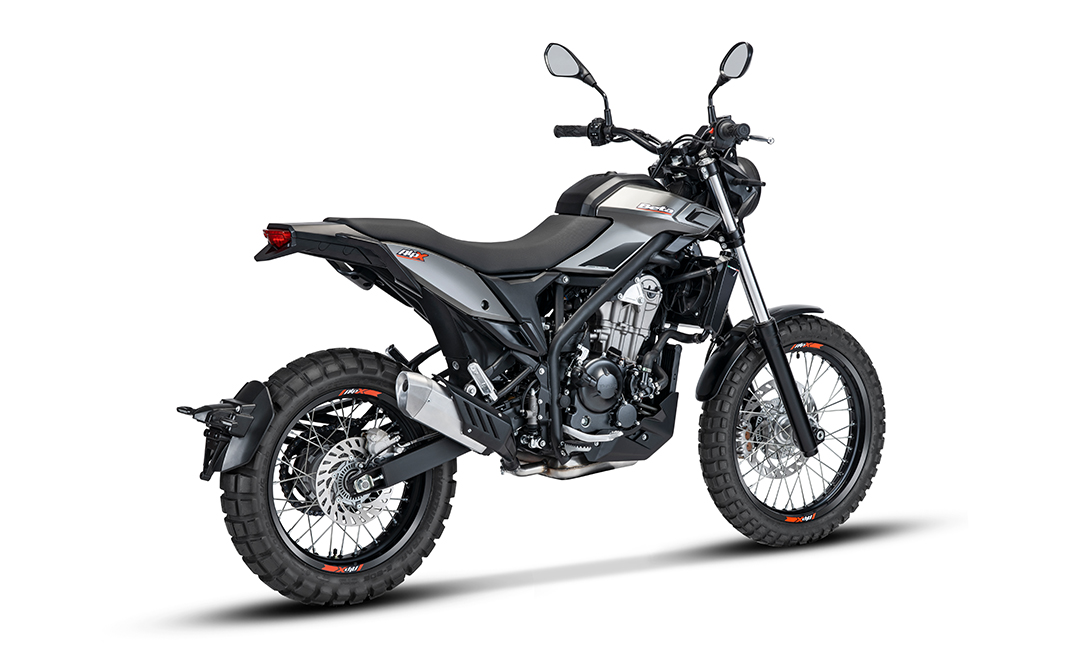

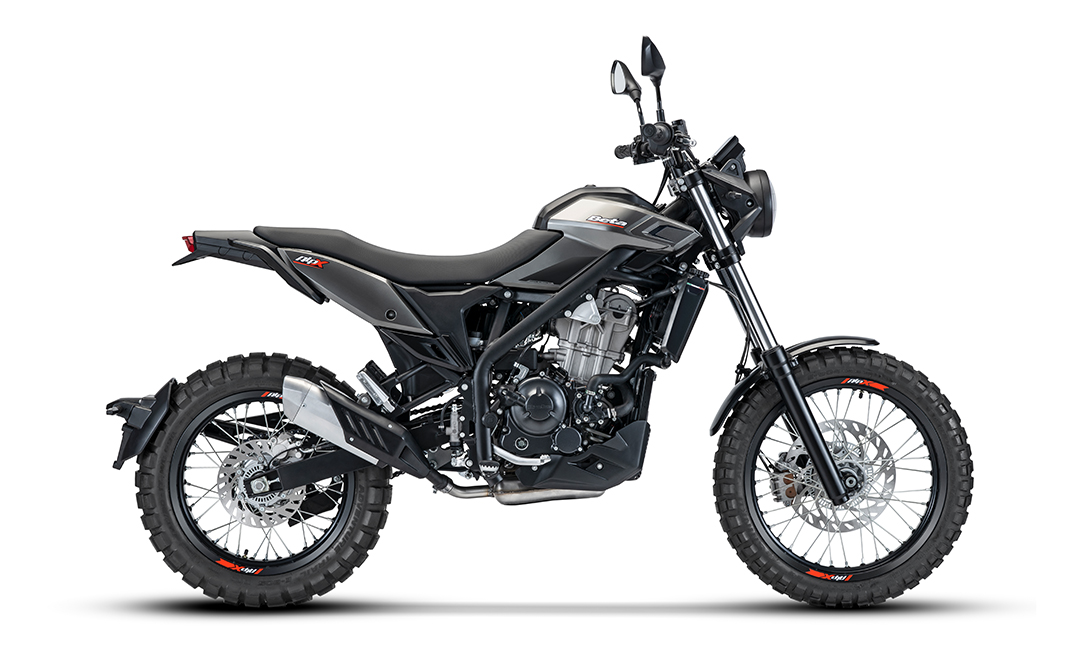

The Alp X stands out for its modern aesthetics inspired by the world of scrambler. The key element is the 19' front wheel and 17' rear wheel, a choice that defines not only its look but also its intuitive handling. It is the perfect bike for getting around town in style, always ready for a detour onto dirt roads.

Displacement Dry weight Seat height Front and rear wheel rim
348 CC 142 KG 855 mm 2,50 x 19 / 3,50 x 17
SCRAMBLER STYLE, DUAL SPORT SOUL
DESIGN & VEHICLE

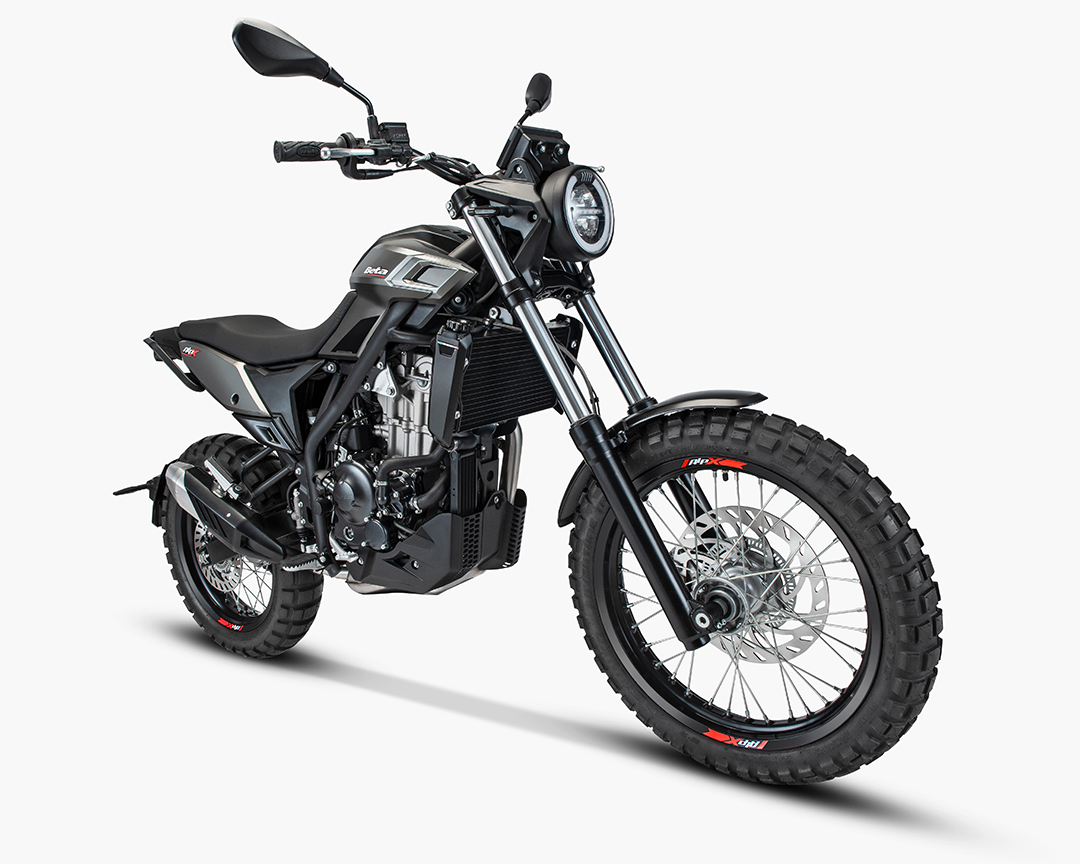

SCRAMBLER STYLE, DUAL SPORT SOUL

The Alp X stands out for its modern aesthetics inspired by the world of scrambler. The key element is the 19' front wheel and 17' rear wheel, a choice that defines not only its look but also its intuitive handling. It is the perfect bike for getting around town in style, always ready for a detour onto dirt roads.

VERSATILITY IN DETAILS

The dual nature of the Alp X is no coincidence, but the result of precise technical choices. The braking system with switchable ABS ensures safety on wet asphalt, but gives you full control for off-road riding. Similarly, the tyres and suspension settings are designed to offer excellent comfort in the city and reliable traction on trails. Each component is carefully balanced so that you never have to compromise.

Technical Specifications

Click on each category to expand/collapse

CHASSIS

FRAME Steel perimeter with motor hanging
WHEEL BASE 1440 mm
MAX LENGTH 2200 mm
MAX WIDTH 820 mm
MAX HEIGHT 1190 mm
SEAT HEIGHT 855 mm
GROUND CLEARANCE 260 mm
FOOTREST HEIGHT 360 mm
DRY WEIGHT 142 kg (front 67,5kg, rear 73,5kg)
fuel tank capacity 11,0 l
reserve 2,3 l
front suspension Hydraulic fork with ø43 mm shaft
rear suspension Monoshock with adjustable spring preload
shock absorber stroke 86 mm
front wheel travel 185 mm
rear wheel travel 195 mm
front brake Disc ø290 mm
rear brake Disc ø220 mm
front rim 2,50 x 19
rear rim 3,50 x 17
front tyre 100/90 – 19
rear tyre 140/80 -17

ENGINE

type Single-cylinder, 4-stroke, liquid-cooled, twin overhead camshaft
bore 84,5 mm
stroke 62,0 mm
displacement 348 cc
compression ratio 12,3:1
throttle body ø44 mm
feeding Elldor electronic injection
starter Electric
LUBRICATION Forced with pump
VALVES 4
IGNITION Electronic
SPARK PLUG NGK LDK8RTAIP
CLUTCH Wet multi-disc clutch
transmission 6 speed
engine oil Sae 5W/40 (1.800cc)
CONSUMPTION L/100 KM 3,51
pollution Co2 [g/km] 83
