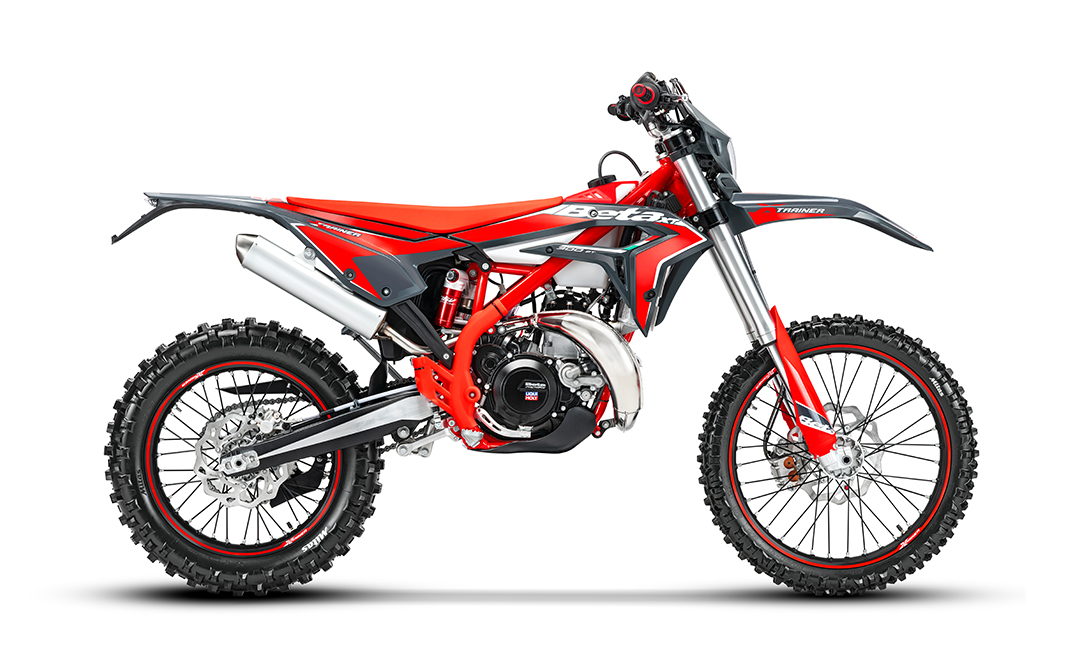

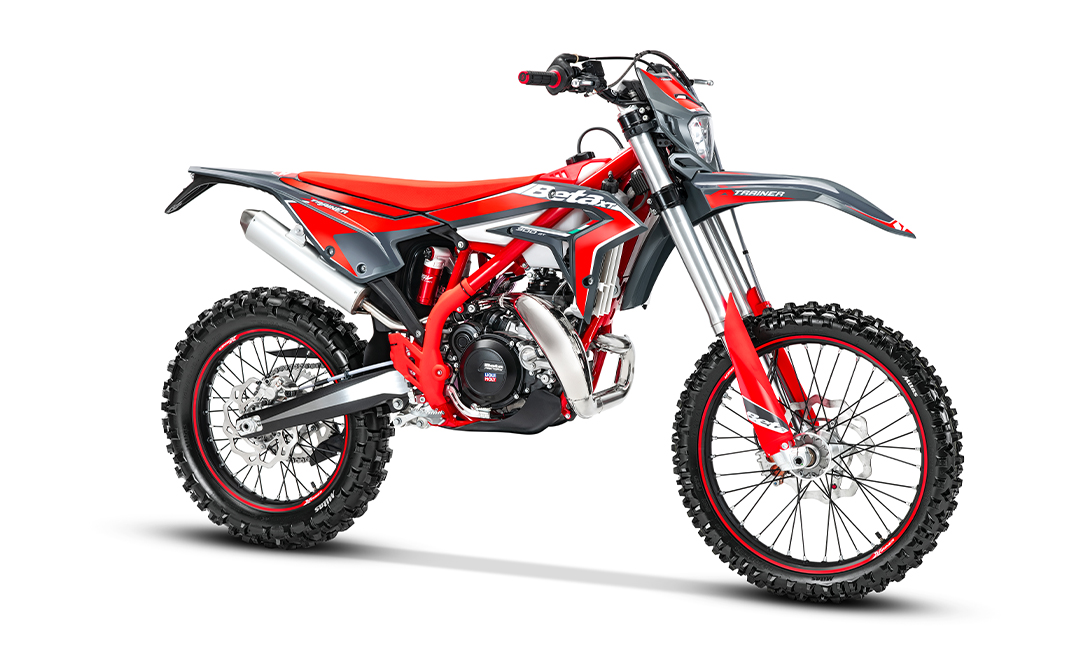

XTRAINER 250 MY26

The 250cc engine has undergone a series of structural changes that make it much more similar to its big sister, the 300cc, in terms of performance. This has been made possible by the use of a crankshaft with a reduced stroke (now the same for both the 250 and 300cc models), which has led to an increase in bore compared to the previous model. A new cylinder head, with a different combustion chamber, and a new cylinder with the appropriate transfers complete the new engine. The result of these changes is a significant increase in torque and linearity of power delivery, without compromising maximum performance, to the benefit of the vehicle’s manageability, also positively impacting handling, centralising the masses and lowering the centre of gravity.

Displacement Bore x stroke Seat height Dry weight
249 cc 67.4 x 69.9 mm 910 mm 99 kg

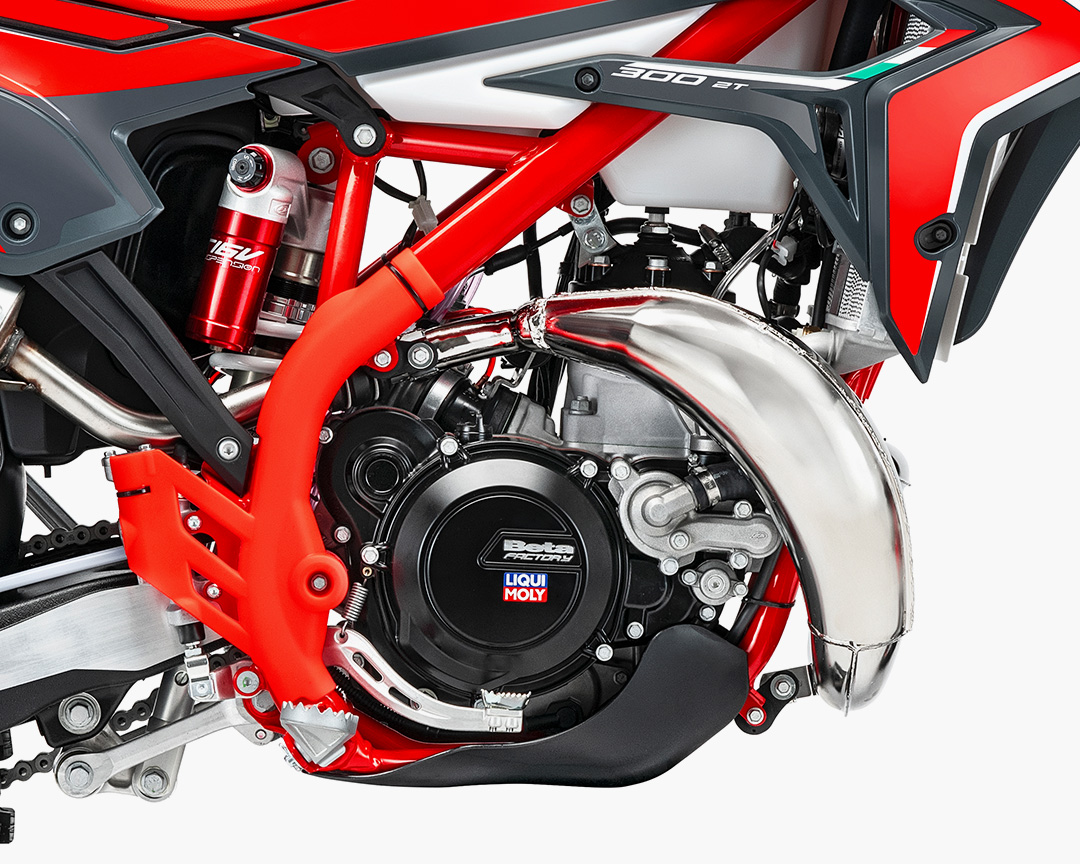

NEW 250 CC ENGINE
ENGINE

NEW 250 CC ENGINE

The 250cc engine has undergone a series of structural changes that make it much more similar to its big sister, the 300cc, in terms of performance. This has been made possible by the use of a crankshaft with a reduced stroke (now the same for both the 250 and 300cc models), which has led to an increase in bore compared to the previous model. A new cylinder head, with a different combustion chamber, and a new cylinder with the appropriate transfers complete the new engine. The result of these changes is a significant increase in torque and linearity of power delivery, without compromising maximum performance, to the benefit of the vehicle’s manageability, also positively impacting handling, centralising the masses and lowering the centre of gravity.

A new heart for the queen of the ‘easy’ enduro

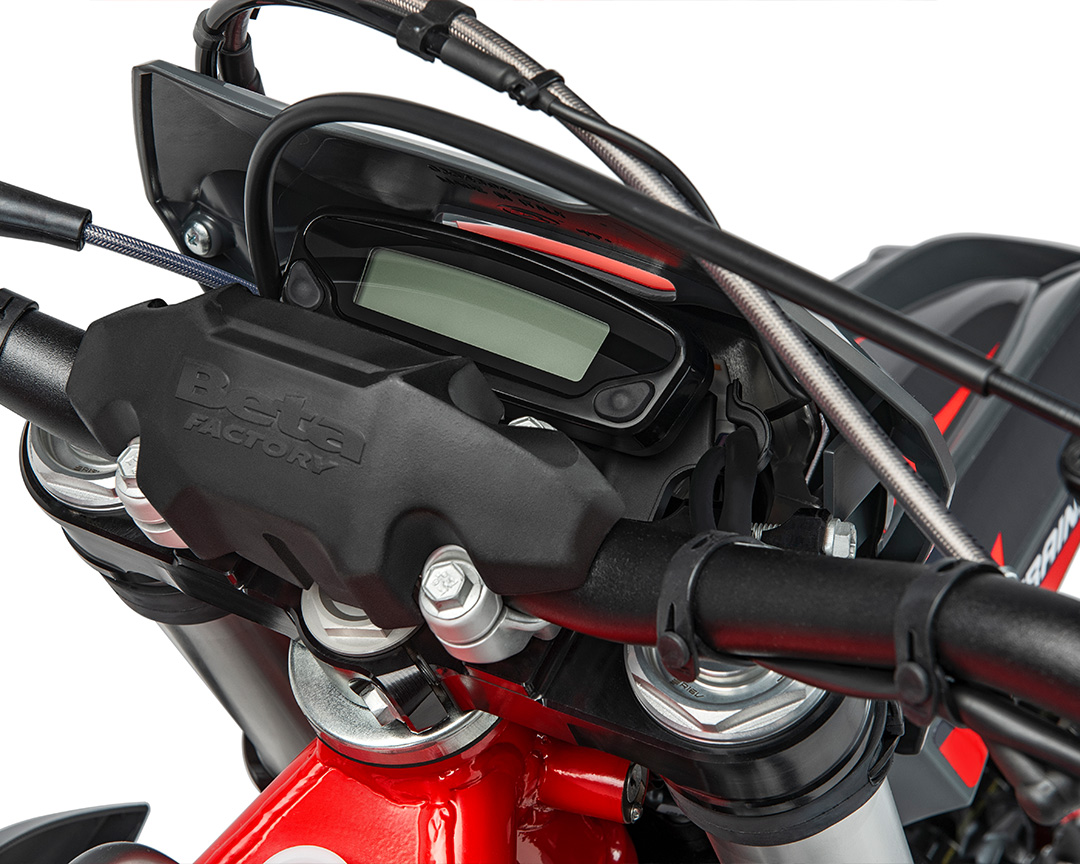

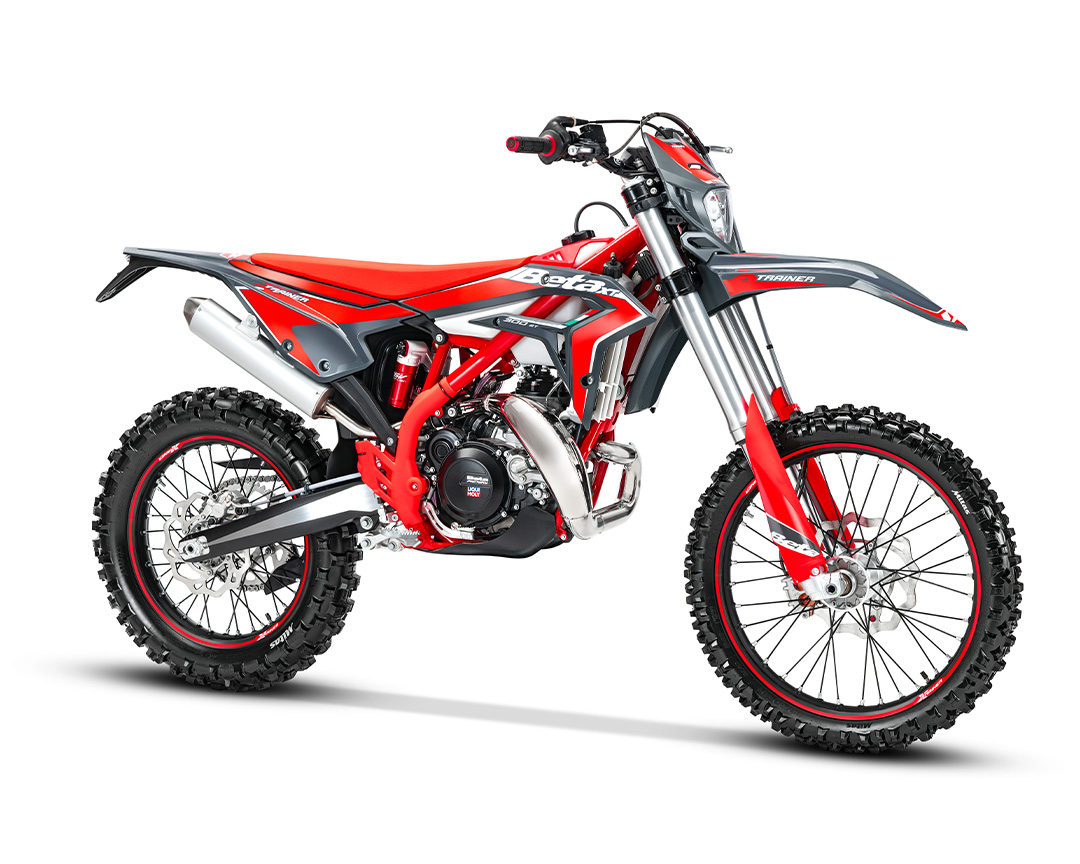

The new MY26 250cc engine borrows its technical platform from its big sister, the 300, with updates that make it more powerful, manageable and fun. Power delivery has been improved across the rev range, while the new handling and functional details simplify riding even on the most demanding sections. The extended second gear and new speedometer confirm the continuous evolution of the XTRAINER, without ever losing its original spirit.

Technical Specifications

Click on each category to expand/collapse

Chassis

Frame Perimetric frame in molybdenum steel with double cradle split above the exhaust port
Wheelbase 1467 mm
Max length 2157 mm
Max width 802 mm
Seat height 910 mm
Ground clearance 320 mm
Footrest height 390 mm
Dry weight 99 kg (front 48,0 kg; rear 51,0 kg)
Fuel tank capacity 8,5 l
Reserve 1,5 l
Cooling system capacity 1,3 l
Front suspension Hydraulic USD fork with ø 43 mm shaft
Rear suspension Monoshock with progressive compound lever
Shock absorber stroke 110 mm
Front wheel travel 270 mm
Rear wheel travel 270 mm
Front brake Wave disc ø260 mm and double-piston floating caliper
Rear brake Wave disc ø240 mm and single-piston floating caliper
Front rim 21 x 1,6 – 36 holes
Rear rim 18 x 1,85 – 36 holes
Front tyre 80/100 – 21
Rear tyre 140/80 -18

Engine

Type Single cylinder, 2-stroke, liquid-cooled
Bore 67,4 mm
Stroke 69,9 mm
Displacement 249 cc
Compression ratio 13,5:1
Exhaust Valve BPV System
Starter Electric starter
Ignition AC Kokusan – digital CDI with oil pump controller
Spark plug NGK GR7CI8
Induction system Induction reed

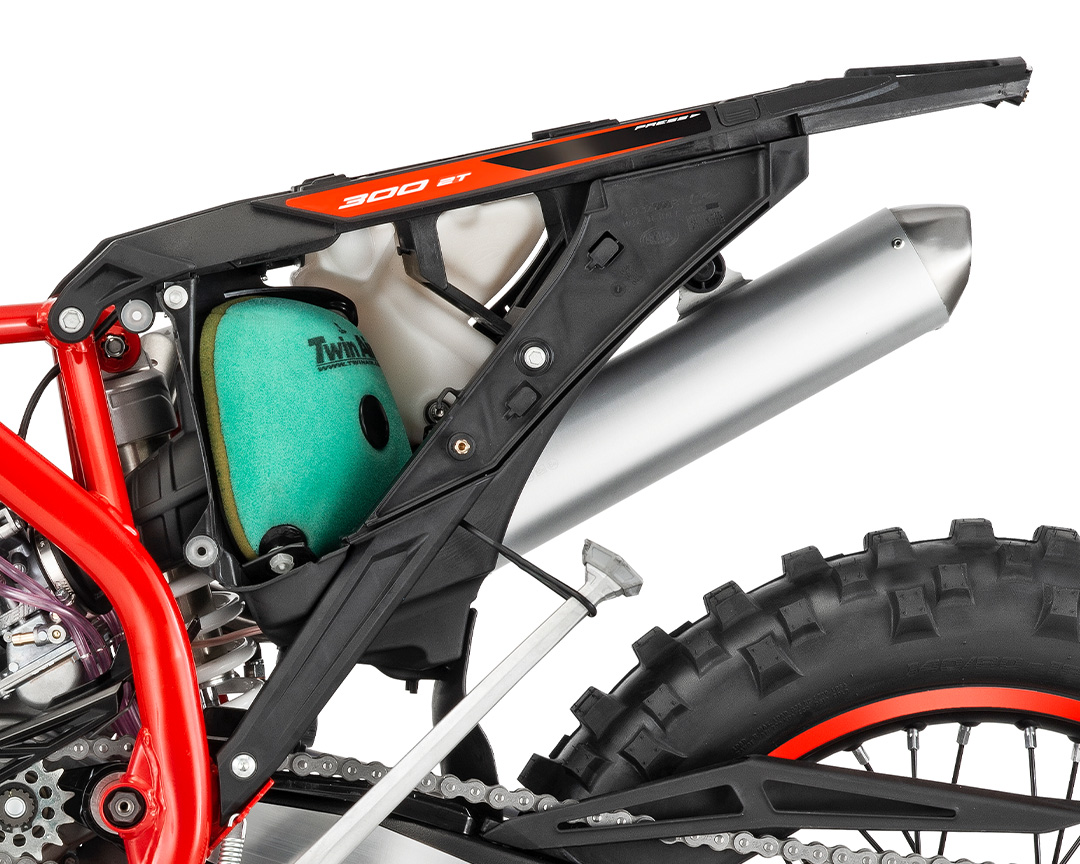

Lubrication Mixing with electronic pump
Carburettor Keihin PWK 36
Clutch Wet multi-disc clutch
Primary drive Z.27/72
Transmission 6 gears
Final transmission Chain
Engine oil SAE 10W/40
Consumption l/100km 2,4
Pollution Co2 [g/km] 55
