YOUNG ENDURO - RR 2T 50 RACE

RR 2T 50 RACE

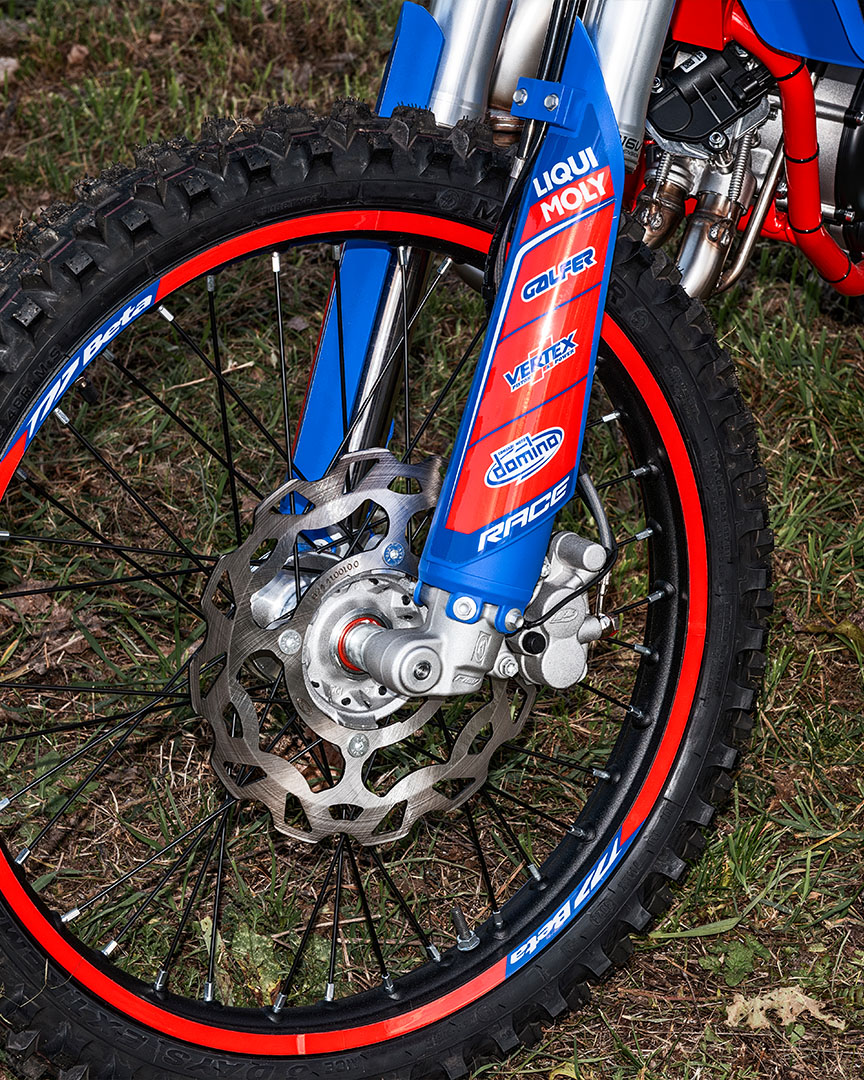

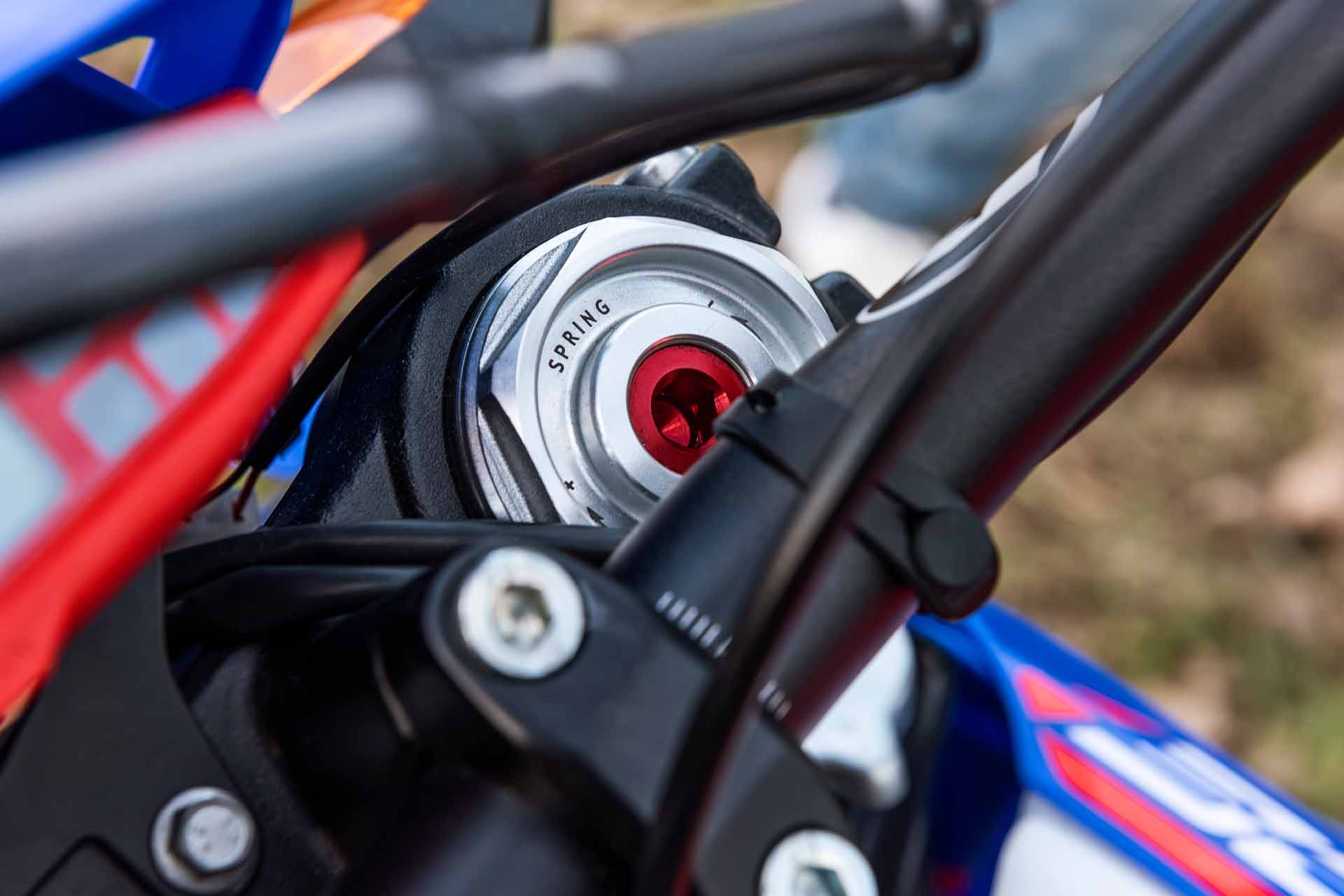

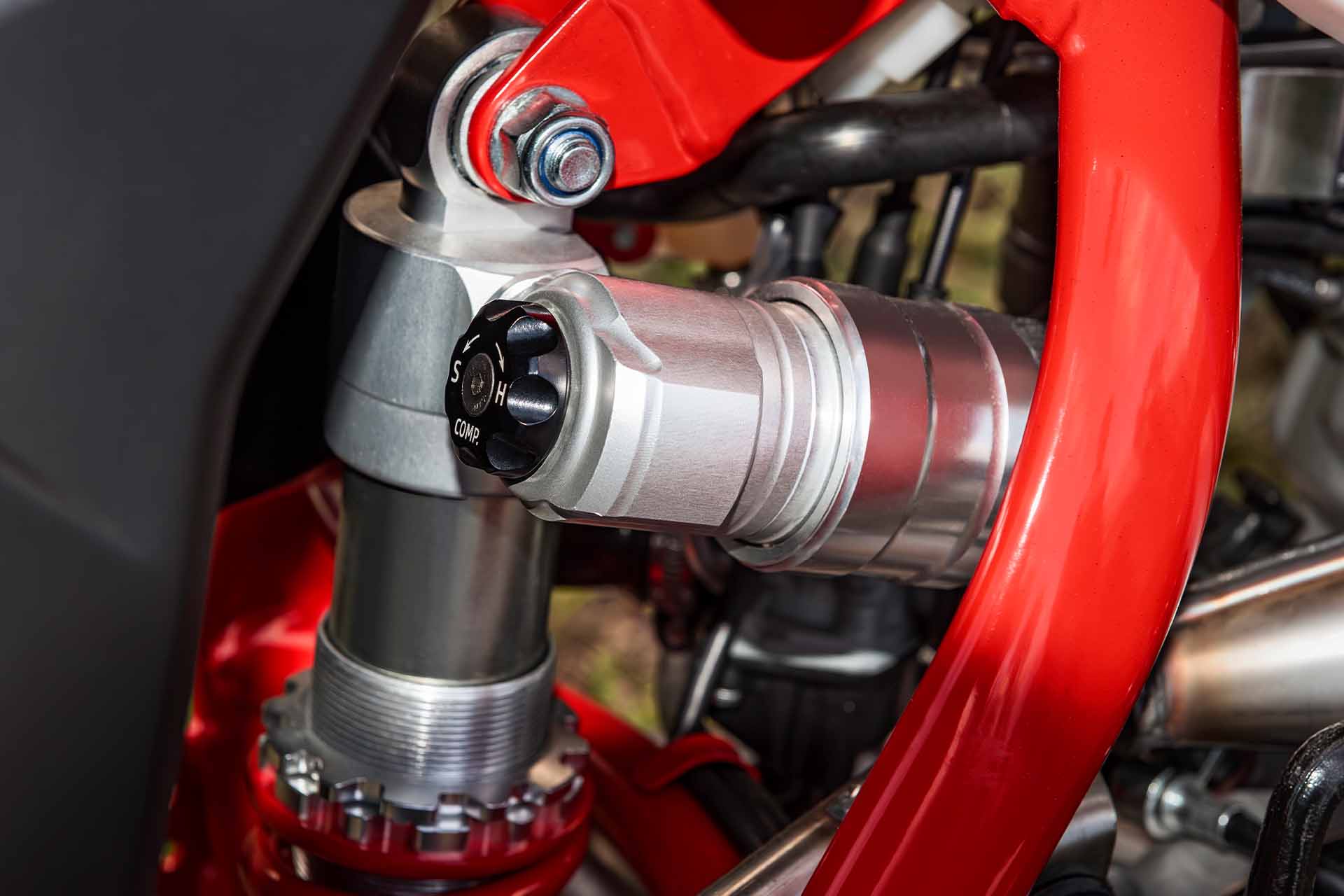

The RR 50 Race features high-level technical equipment, designed for those who want to start racing for real. • Fully adjustable 41 mm upside-down fork for absolute control on any terrain. • Rear shock absorber with separate gas reservoir, adjustable in preload, compression and rebound, combined with progressive linkage for a more precise and consistent response. • Rigid, lightweight and responsive aluminium swingarm guarantees stability and traction even during the most aggressive acceleration. • Aluminium alloy rims, dual-piston front caliper and aluminium racing sprocket complete a true racing bike package. • Red frame, black gear lever and brake pedal, meticulous details and racing finishes that emphasise its competitive nature.

Displacement Fork Diameter Seat Height Dry Weight
49,7 CC ø 41 mm 935 mm 83,5 KG
RACING SOUL
VEHICLE AND COMPONENTS

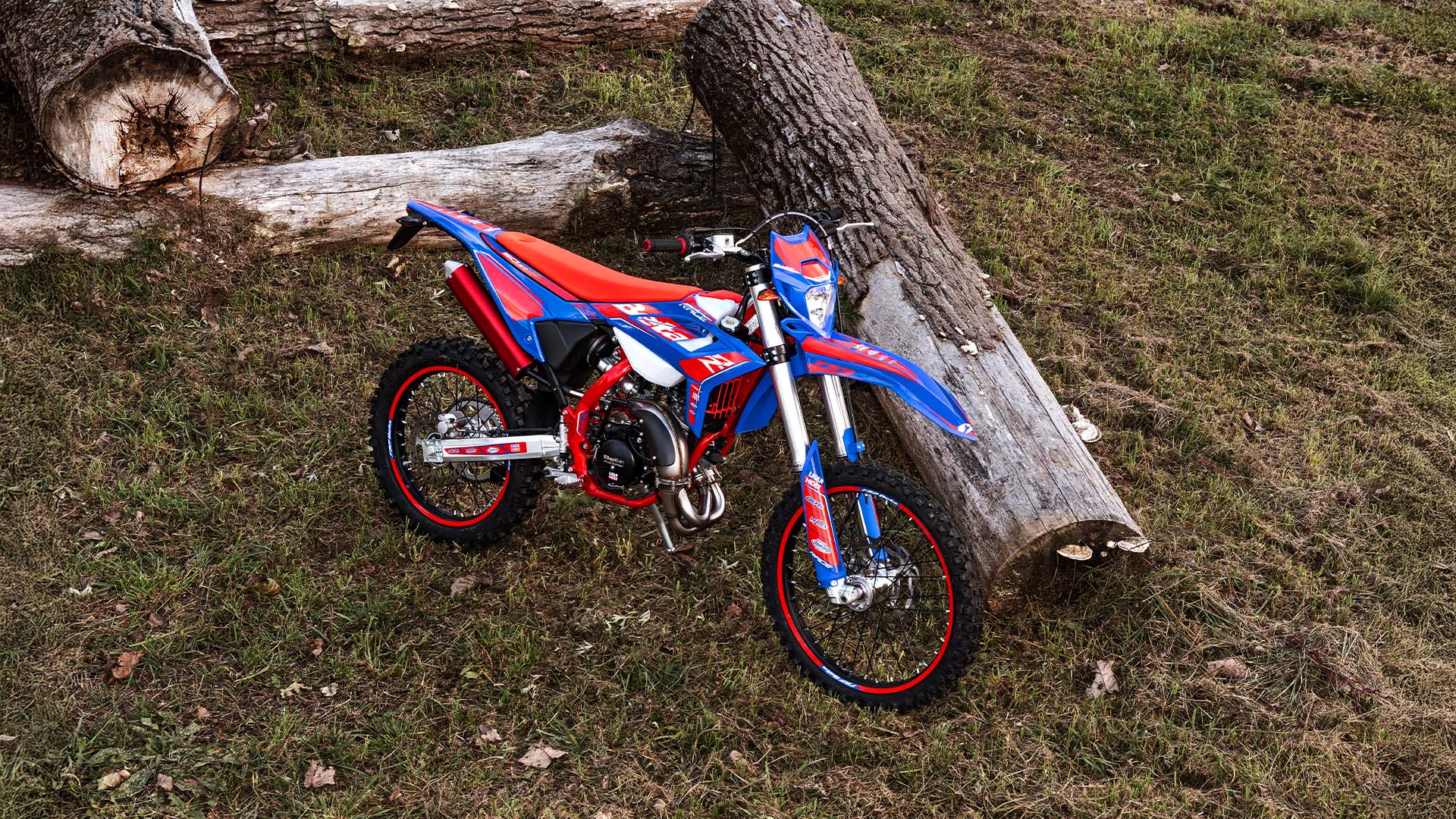

RACING SOUL

The RR 50 Race features high-level technical equipment, designed for those who want to start racing for real. • Fully adjustable 41 mm upside-down fork for absolute control on any terrain. • Rear shock absorber with separate gas reservoir, adjustable in preload, compression and rebound, combined with progressive linkage for a more precise and consistent response. • Rigid, lightweight and responsive aluminium swingarm guarantees stability and traction even during the most aggressive acceleration. • Aluminium alloy rims, dual-piston front caliper and aluminium racing sprocket complete a true racing bike package. • Red frame, black gear lever and brake pedal, meticulous details and racing finishes that emphasise its competitive nature.

Technical Specifications

Click on each category to expand/collapse

CHASSIS

Frame steel double cradle frame
Wheel base 1428 mm
Max length 2090 mm
Max width 810 mm
Max height 1205 mm
Seat height 935 mm
Ground clearance 345 mm
Footrest height 400 mm
Dry weight 83,5 kg
Fuel tank capacity 6,5 l.
Reserve 1,5 l.
Cooling system capacity 1 l.
Front suspension Hydraulic fork with ø41 mm shaft
Rear suspension Monoshock
Shock absorber stroke 124 mm
Front wheel travel 265 mm
Rear wheel travel 255 mm
Front brake Disc ø260 mm
Rear brake Disc ø220 mm
Front rim 21 x 1,6 – 36 holes
Rear rim 18 x 1,85 – 36 holes
Front tyre 90/90 – 21
Rear tyre 120/90 -18

ENGINE

Type Single-cylinder, 2-stroke, liquid cooled
Bore 40,3 mm
Stroke 39 mm
Displacement 49,7 cc
Compression ratio 12:1
Starter Kick
Generator Electronic AET 12V – 85W
Spark plug NGK BR9ES
Intake system Reed valve in the engine case
Lubrication Mixture 2%
Fuel system Carburettor
Carburettor Dell'Orto PHBN 16 HS
Clutch Wet multi-disc clutch
Primary trasmission Z.20/71
Transmission 6 Speed
Secondary Trasmission Chain
Engine oil SAE 20W/30
Consumption l/100 km 2,41
Pollution Co2 [g/km] 57
