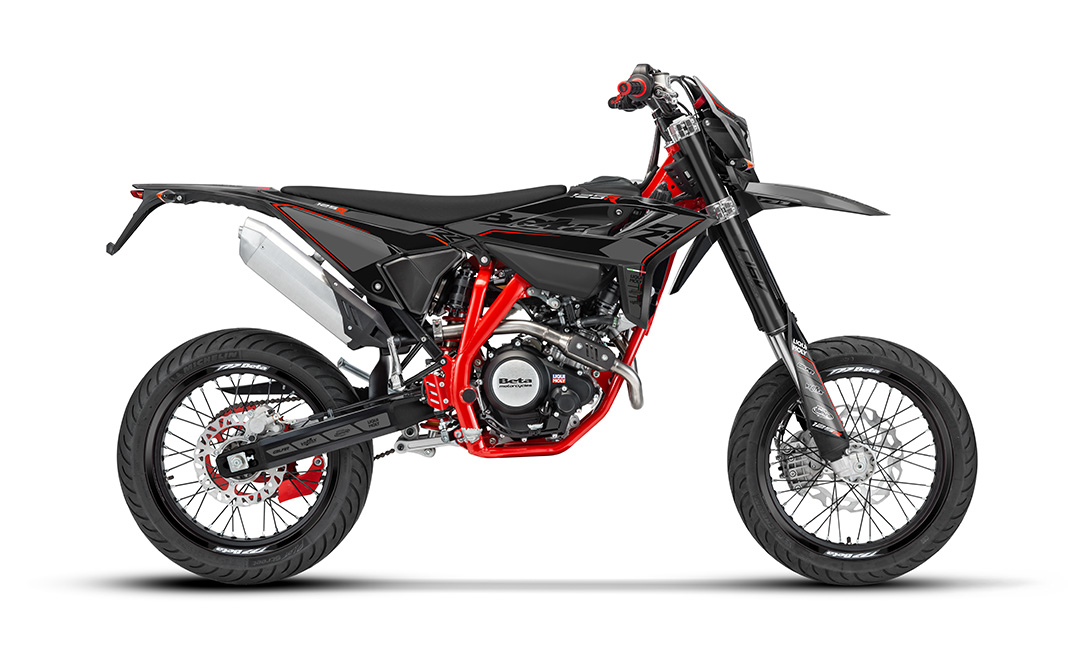

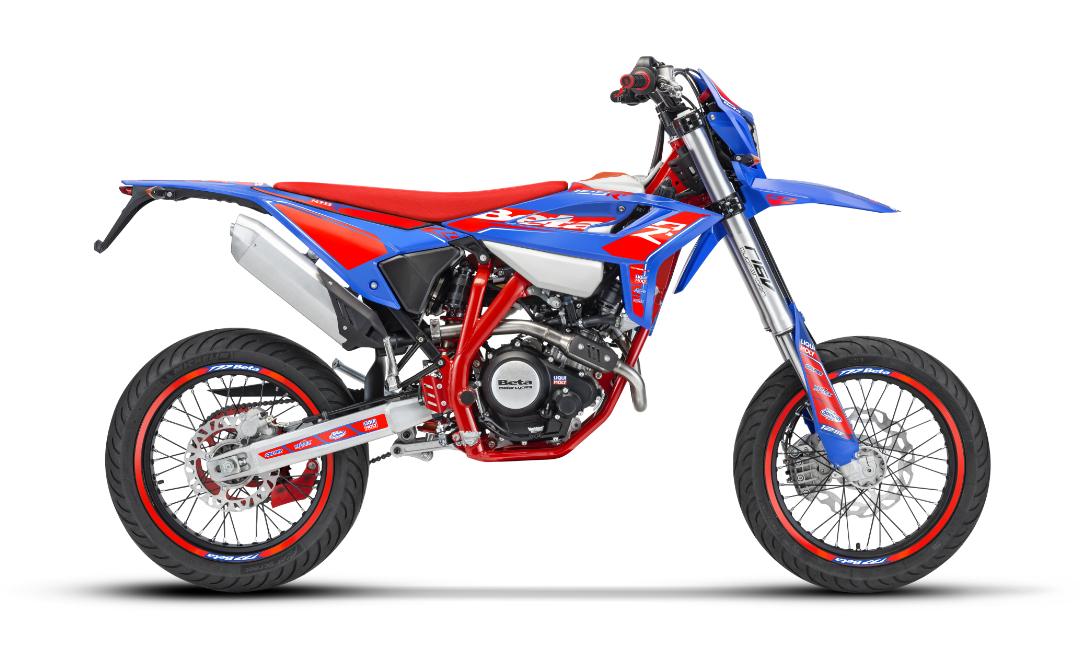

SUPERMOTO - RR MOTARD 125 R
RR MOTARD 125 R
The tried and tested Minarelli 4-stroke Euro 5+ engine is an absolute benchmark in the 125 segment: brilliant, smooth and always ready to rev up. Reliability and precision combine with a full and linear response, perfect for those who want to have fun on the road or off-road with a lightweight but characterful machine.
| Displacement | Bore x stroke | Seat height | Dry weight |
|---|---|---|---|
| 124,66 cc | 52,0 x 58,7 mm | 920 mm | 107 kg |
ENGINE

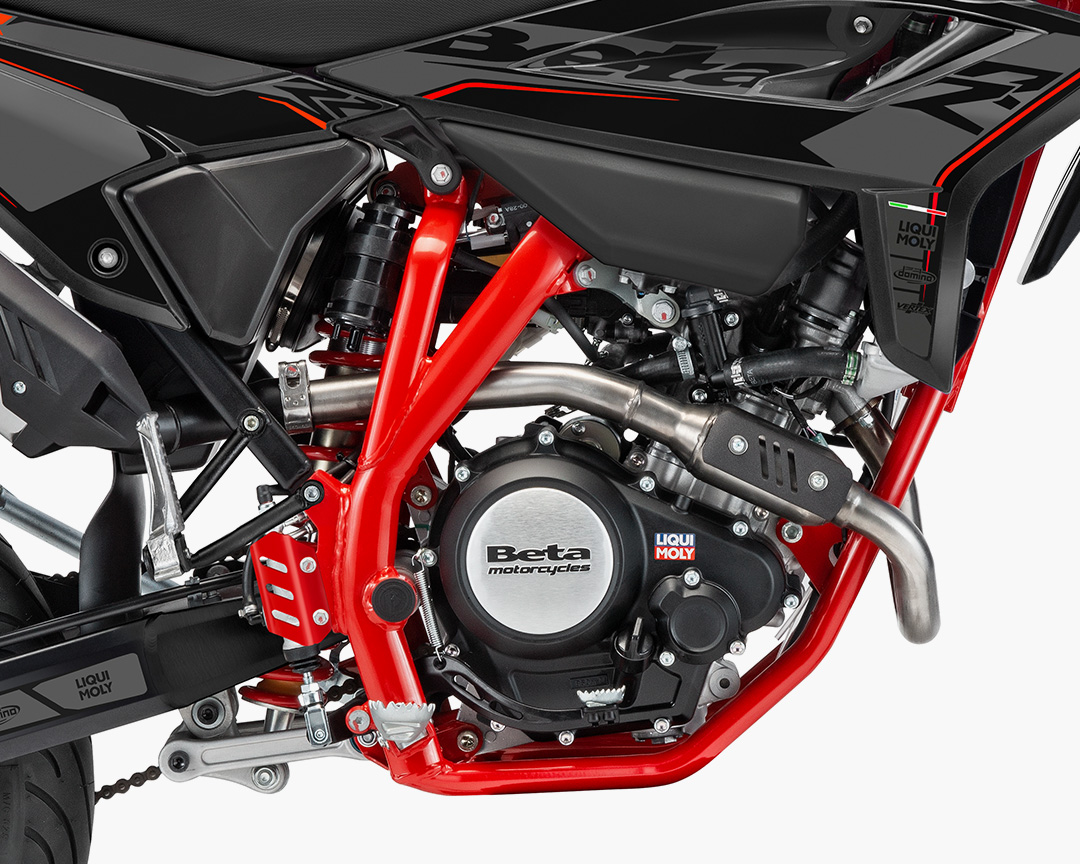

MINARELLI ENGINE
The tried and tested Minarelli 4-stroke Euro 5+ engine is an absolute benchmark in the 125 segment: brilliant, smooth and always ready to rev up. Reliability and precision combine with a full and linear response, perfect for those who want to have fun on the road or off-road with a lightweight but characterful machine.
Special Feature
Discover the unique characteristics of this motorcycle
In Detail
Explore Every Detail
Swipe or click navigation to explore
VEHICLE

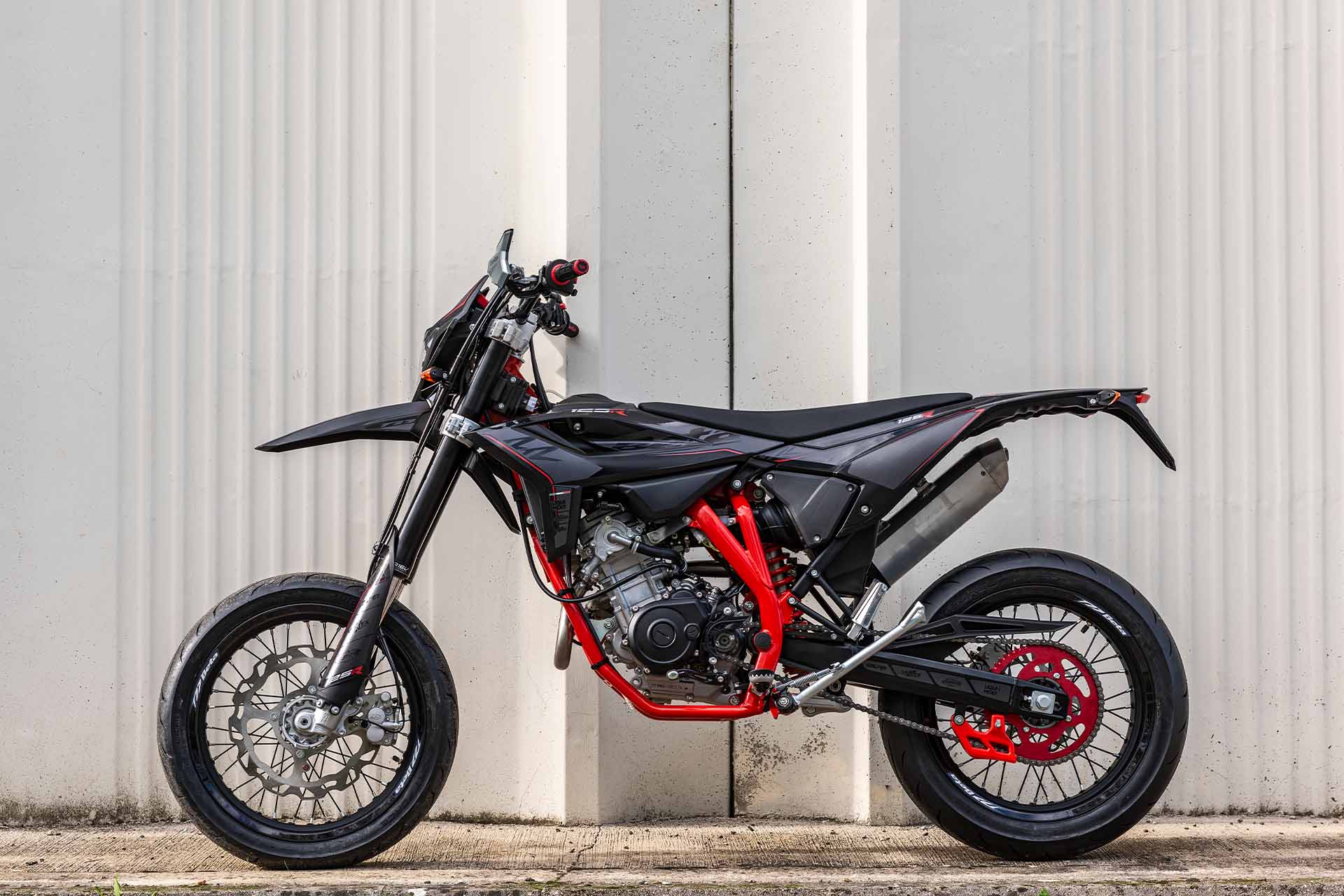

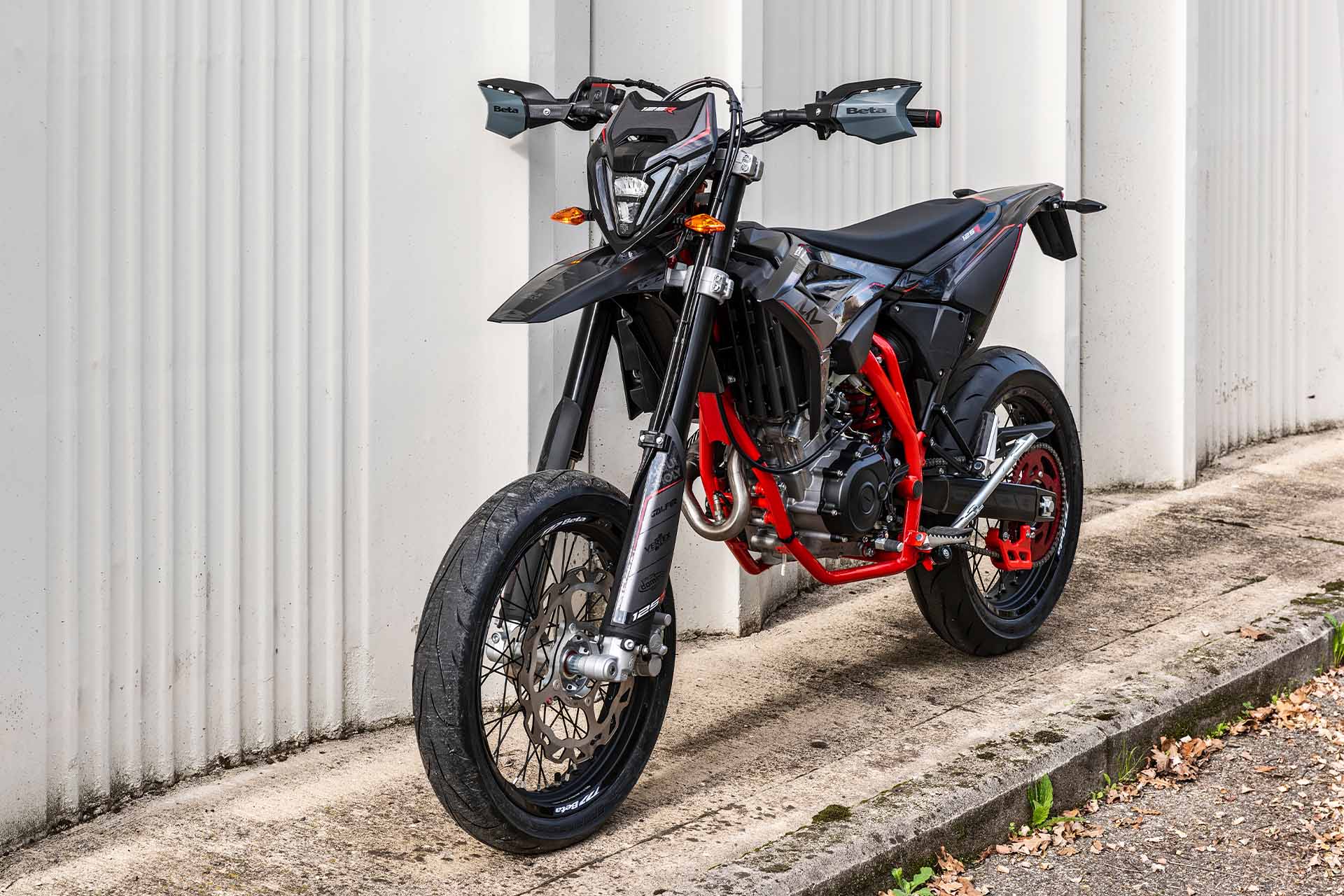

Red frame, anodised aluminium swingarm and spoked wheels: the RR 125 R boasts a chassis with attention to every detail. The new CBS combined braking system intelligently manages the distribution of braking power, improving stability and confidence even in urban environments.
DESIGN AND DETAILS
SPECIAL COMPONENTS

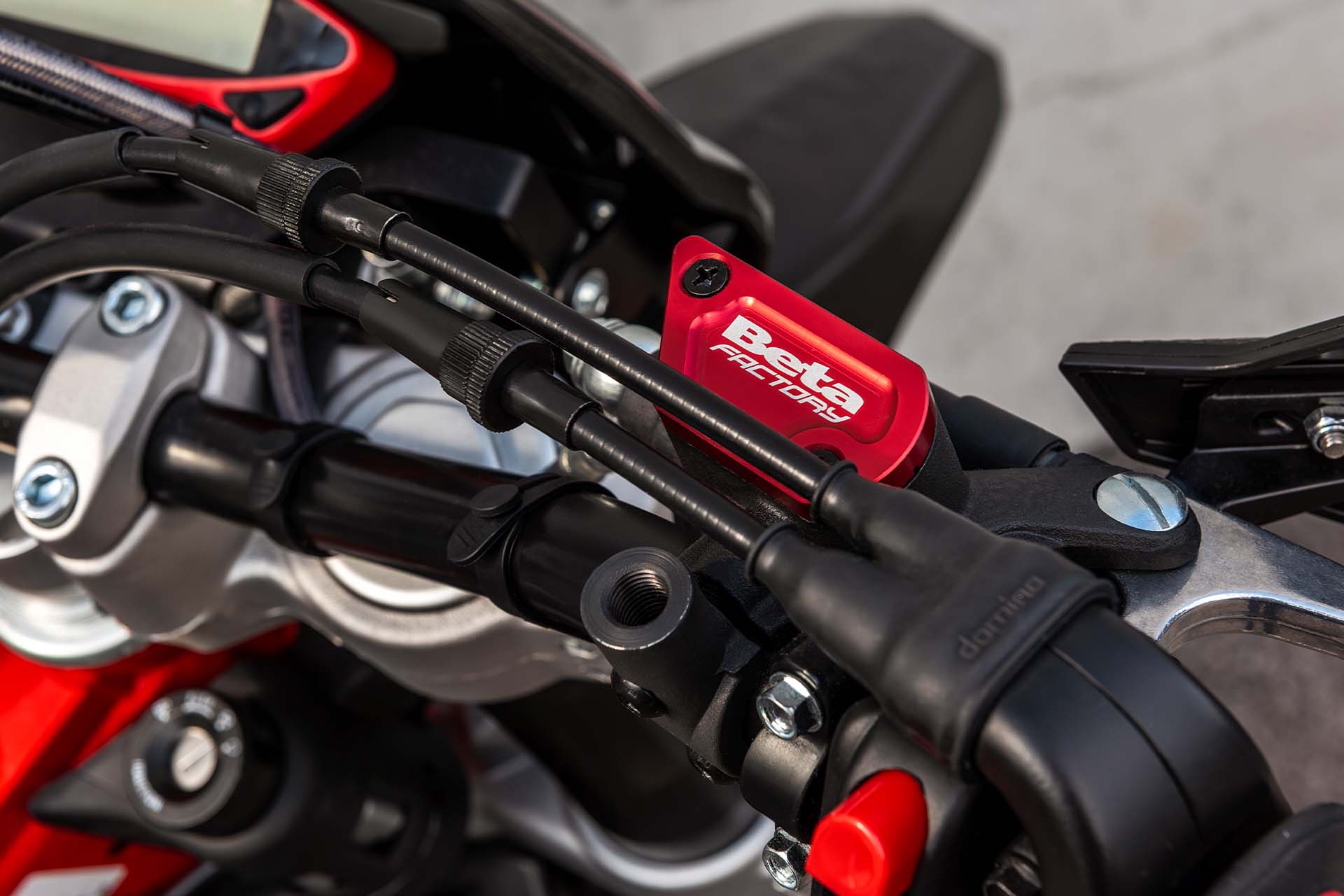

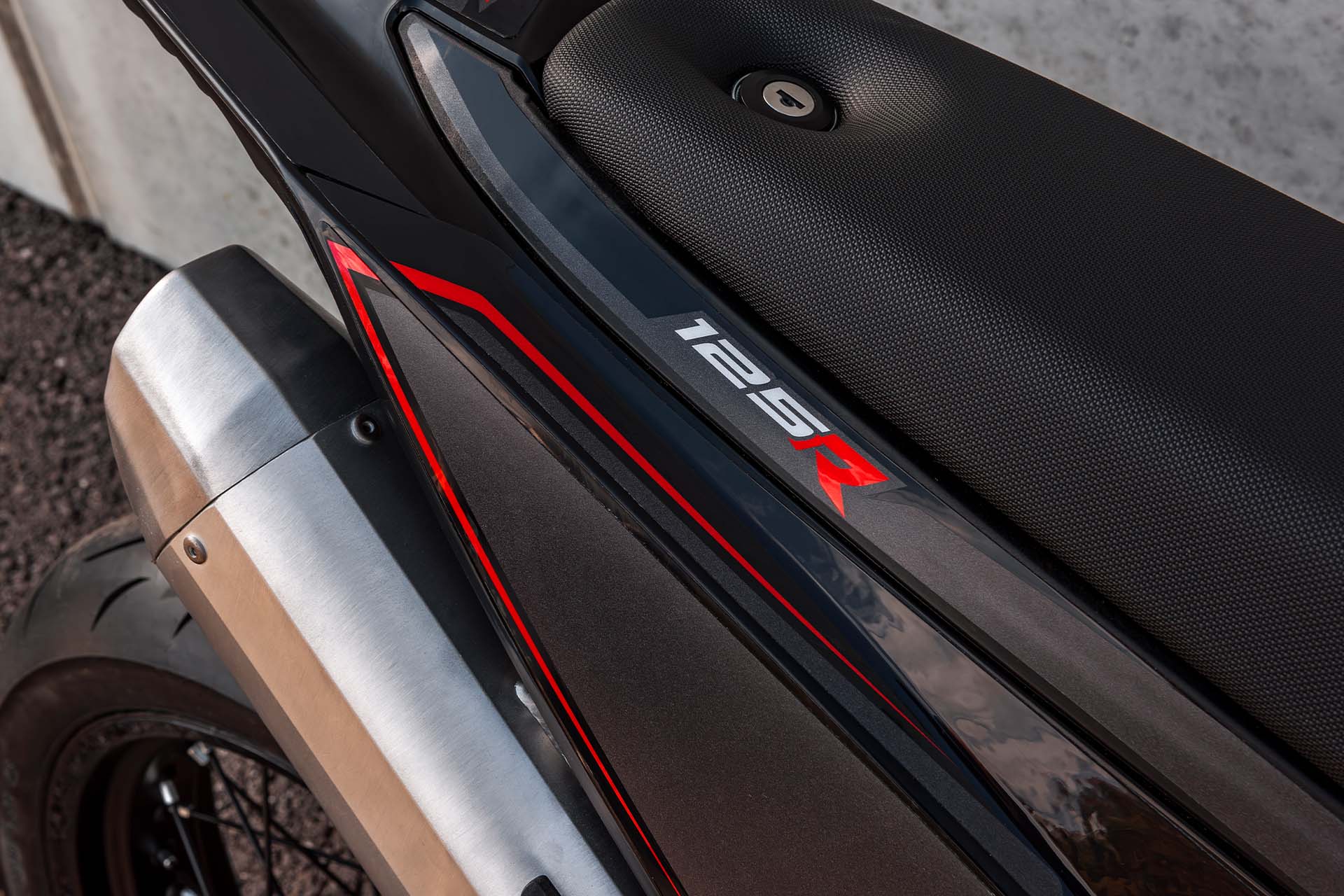

The anodised aluminium silencer enhances the racing look and guarantees a full, sporty sound, while the special Ergal components add a technical and exclusive touch.

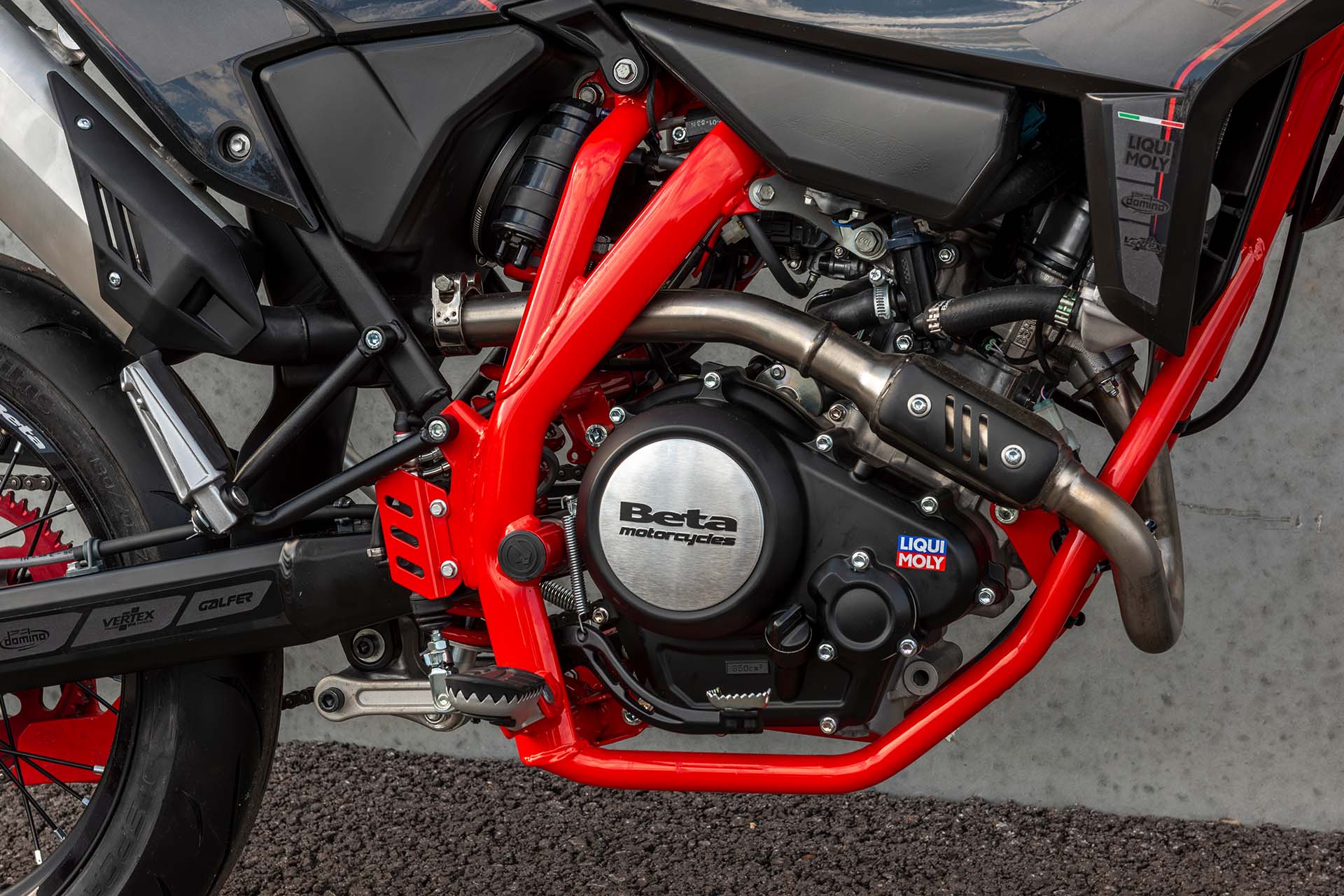

Gallery Collection
Technical Specifications
Click on each category to expand/collapse
CHASSIS
▼| Frame | steel double cradle frame |
| Wheel base | 1435 mm |
| Max length | 2145 mm |
| Max width | 830 mm |
| Max height | 1220 mm |
| Seat height | 920 mm |
| Ground clearance | 330 mm |
| Footrest height | 400 mm |
| Dry weight | 107 kg |
| Fuel tank capacity | 7,5 l. |
| Reserve | 1,5 l. |
| Front suspension | Hydraulic fork with ø41 mm shaft |
| Rear suspension | Monoshock with progressive compound lever |
| Shock absorber stroke | 131 mm |
| Front wheel travel | 265 mm |
| Rear wheel travel | 270 mm |
| Front brake | Disc ø260 mm |
| Rear brake | Disc ø220 mm |
| Front rim | 21 x 1,6 – 36 holes |
| Rear rim | 18 x 1,85 – 36 holes |
| Front tyre | 90/90 – 21 |
| Rear tyre | 120/90 -18 |
ENGINE
▼| Type | Single-cylinder, 2-stroke, liquid cooled |
| Bore | 52 mm |
| Stroke | 58,7 mm |
| Displacement | 124,66 cc |
| Compression ratio | 12,5:1 |
| Ignition | Electronic 250W-14v |
| Spark plug | NGK CR8EI |
| Lubrication | Forced with pump |
| Feeding | Unleaded gasoline |
| Injection | Elldor |
| Clutch | Wet multi-disc clutch |
| Transmission | 6 Speed |
| Secondary trasmission | Z. 17/63 |
| Engine oil | SAE 15W/50 |
| Consumption l/100 km | 1,9 |
| Pollution Co2 [g/km] | 44,5 |
